Fabrication sequence of the pressure sensor with monolithic pressure connection.
Pressure sensor based on LTCC with monolithic pressure connection.

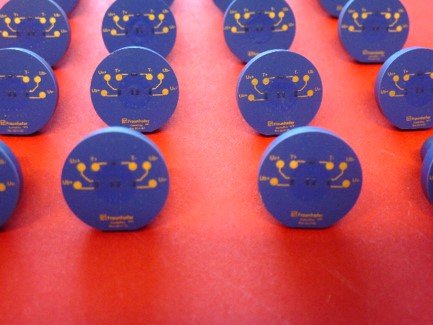

Fabrication in high volumes of the pressure sensors.
The current trend for high performance ceramics demands for components with complex geometry combined with multi-functional properties. The combination of the ceramic injection-molding with the ceramic multilayer-technology (LTCC) establishes completely new possibilities in the product design for an efficient fabrication of innovative marketable products. The Inmould-Labeling of ceramic green tapes combines the advantages of both techniques. Due to the multicomponent injection-molding the highly functional multi-layer-ceramic (MLC) technology, a typical 2.5D technology is qualified to an equal third dimension. This provides the fabrication of complex components with integrated functions (e.g. fluidic devices, sensors, actors).
Services offered:
- Customer service concerning manufacturing options in LTCC
- Custom-built design
- Elaboration and qualification of manufacturing processes
- Manufacturing of samples
- Technology transfer
